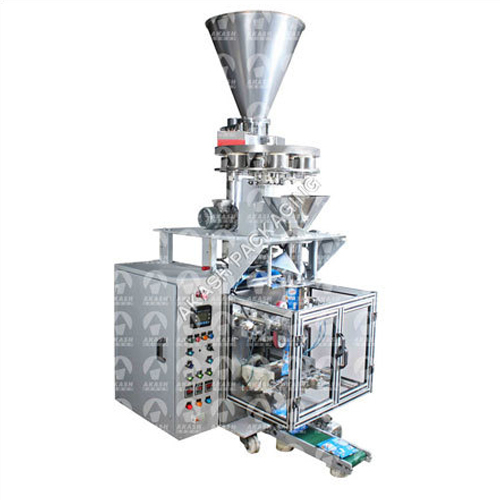

We are the prestigious organization in the industry, which is engrossed in the offering Collor Cup Filler. Superlative quality raw materials and pioneering technology are utilized to manufacture the filler. The offered Collor Cup Filler is available in different dimensions and specifications so as to meet diversified needs of the customers. Ideally to be utilized in the packaging process of granules & powder products such as sugar, henna, tea, salt and various other items. Automatic Collor Cup Filler are customized as per the requirements of our clients.
The array of Model AP-Collar- 400P Single Lane pouch filling machines is accessible in varied web control options like pneumo hydraulic web edge controller and electronic web edge control. This is mainly utilized for the pouch filling of non free flow powder, free flow powder and granules items.
The speed of this model of VFFS Collor Cup Filler goes up to 40 SPM according to the pouch dimension. This is available in servo as well as clutch brake film draw mechanism and is provided an market competitive rates. We utilize supreme grade raw material and modern technology to develop such machines.
| Machine speed | Up to 80 SPM depending on the product & sachet/pouch dimension. |
| Packing range | Suitable to pack up to 1000 gram and above depending upon product to be packed |
| No. of tracks | Single track |
| Max. roll width | 400 mm |
| Max. roll dia | 200 mm |
| Max length of pouch | Up to 300 mm |
| Film draw mechanism | Options |
| Web controller | Options |
| Compressed air | 2 CFM @ 6 kg/cm sq |
| Electrical power required | Up to 4 KW |
| Main Body Frame | Option SS Body |
| Type of Sealing | Option: - 4 Side Sealing |
| Machine Dimension (Lmm X Wmm X Hmm) | 1812mm X 1130mm x 2300mm |
| Net weight | 1500 kg |
