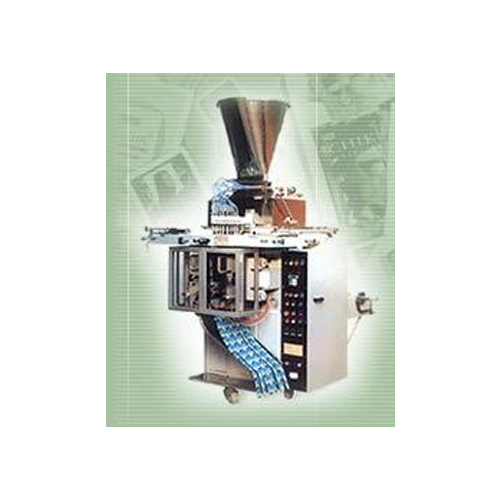

Fully Automatic Multitrack Form Fill & Seal Machine

Fully Automatic Multitrack Form Fill & Seal Machine

Fully Automatic Multitrack Form Fill & Seal Machine is suitable for packing various granuals, powder, liquid and other different products in four side seal pack, This machine is PLC controlled and also equipped with servo drive motors, unwinding unit and web control system.

Salient Features of Fully Automatic Multitrack Form Fill & Seal Machine :-

  • The multi track form filling sealing machine is a PLC controlled fully automatic machine.
  • One of the biggest feature of this filling sealing machine being the machine having the technology of making 3 side seal sachets/ pouches being an innovation of its kind in the entire nation especially designed for liquid packing thereby giving a cutting edge on the economy of the pack leading to approx. 25% saving on laminate.
  • Other than 3 side seal, the machine also produces 4 side seal pouches.
  • The machinery is capable of packing different kinds of liquids, pastes, granules, powders categorized as shampoo, ketchup, oil, lube, petroleum jelly (cream), spices, tea coffee and other related products.
  • The machinery also has the feature of providing on line zipper facility.
  • Various types of heat sellable laminated films namely polyester poly, polyester metallised polyester poly, aluminium foil based can be run on the machine.
  • The machine is further equipped with PID (proportional integral derivative) based temperature controllers.
  • Machinery also has the feature of providing spout arrangements.
  • There are three different models available depending on their roll widths viz-a-viz 400 mm, 600 mm and 800 mm.
  • Jacket hopper with heating element for special food products namely catchup, cheese, jam can be provided as an optional device.
  • All product contact parts are made of food grade stainless steel SS 316.
  • As an optional device collating system can also be provided in the machinery.

Technical specifications :-

Description

Model AP 800

Model AP 600

Model AP 400

Machine speed

Upto 90 SPM depending on the product & quality to be packed

Upto 70 SPM

-

Packing range

1 ml to 20 ml

1 ml to 1000 ml

1 ml to 500 ml

No. Of tracks

Depending on the pouch width (8-10 track)

Depending on the pouch width upto 6 track

Upto 4 track

Max. Roll width

800 mm

600 mm

400 mm

Max. Roll dia

800 mm

450 mm

400 mm

Max length of pouch

Programmable

250 mm

150 mm

Film draw mechanism Options a.) Servo based b.)

Electromagnetic clutch and break

Electromagnetic clutch and break

Electromagnetic clutch and break

Web controller Options a.)Electronic web edge control b.) Pneumo hydraulic web edge controller

Pneumo hydraulic web edge controller

Pneumo hydraulic web edge controller


Compressed air

2 CFM @ 6 kg/cm sq.

2 CFM @ 6 kg/cm sq.

2 CFM @ 6 kg/cm sq.


9.4 kw

7.6 kw

5.0 kw

Dimension

4000mm x 1600mm x 2700mm (LxWxH)

2100mm x 1500mm x 2700mm (LxWxH)

180mm x 1200mm x 2500mm (LxWxH)

Net weight

2200 kg

1500 kg

1200 kg
